Product Introduction
High-pressure HPL Plywood represents a premium surfacing solution engineered for demanding environments where both aesthetic appeal and structural durability are non-negotiable. As a leading manufacturer and global supplier, we provide this high-performance material to meet the rigorous standards of modern architectural millwork and interior design. Each panel combines a robust structural core with decorative high-pressure laminate (HPL) surfaces, ensuring a product that is as resilient as it is beautiful. Our commitment to precision engineering allows us to deliver consistent, high-quality panels designed to streamline your production and elevate your final projects.
High-pressure HPL Plywood is the result of a sophisticated manufacturing process that fuses the organic strength of premium wood veneers with the nearly impenetrable resilience of decorative laminates. This product is characterized by its impeccable flatness and superior dimensional stability, making it a favorite among craftsmen and designers who refuse to compromise on quality. When you run your hand across the surface, you immediately notice the precision of the texture, ranging from the silky smoothness of a matte finish to the deep, tactile grain of an embossed wood pattern. Unlike standard laminates, our HPL is bonded under extreme pressure and heat, creating a seamless integration that eliminates the risk of delamination or bubbling even in fluctuating climates. The core is meticulously constructed from high-grade poplar, eucalyptus, or birch veneers, providing a balanced weight-to-strength ratio that holds screws with exceptional tenacity. Visually, the panels offer a striking depth of color and clarity, ensuring that every installation looks as vibrant years later as it did on the day of completion. This material is not merely a surface; it is a meticulously engineered component designed to withstand the rigors of high-traffic commercial use while maintaining the elegant profile required for luxury interiors.
| Specification Item | Technical Detail & Range |
| Product Name | High-pressure HPL Plywood |
| HPL Thickness | 0.5mm to 1.5mm (Standard 0.6mm / 0.8mm) |
| Base Plywood Core | Poplar, Eucalyptus, Birch, Combi Core, or Hardwood |
| Standard Dimensions | 1220 x 2440mm (4' x 8'), 1250 x 2500mm, or Customized |
| Total Panel Thickness | 4mm, 6mm, 9mm, 12mm, 15mm, 16mm, 18mm, 25mm |
| Glue Type | E0, E1, CARB P2, WBP Melamine, Phenolic Glue |
| Surface Finish | Matt, Glossy, Textured, Wood Grain, Embossed, Pit |
| HPL Sides | Single-sided or Double-sided HPL Lamination |
| Moisture Content | 8% - 12% |
| Density | 530kg/m³ - 680kg/m³ (depending on core material) |
| Fire Rating | Grade B-s1, d0 (Optional Fire-retardant treatment) |
The integration of high-pressure laminate with a multi-layered plywood core creates a product with a unique set of performance advantages. These features are designed to address the common pain points found in commercial and residential surfacing projects.
The HPL layer acts as a protective shield, offering industry-leading resistance to scratches, abrasions, and impact. This makes it an ideal choice for high-touch surfaces like countertops, workbenches, and reception desks where maintaining a pristine appearance is vital.
The non-porous nature of the laminate surface prevents the absorption of liquids and household chemicals. Our panels are engineered to resist staining and swelling, ensuring longevity in environments prone to spills or high humidity, such as kitchens and laboratories.
By utilizing a cross-banded veneer core, our plywood minimizes the natural tendency of wood to warp or shrink. The high-pressure bonding process further reinforces the panel, resulting in a flat, predictable board that is easy to machine and install.
The dense surface of the HPL inhibits the growth of bacteria and fungi. It requires no specialized cleaners; a simple wipe with a damp cloth is usually sufficient to maintain its hygienic properties, which is crucial for healthcare and educational facilities.
The structural integrity of our High-pressure HPL Plywood begins with the selection of the raw timber. We utilize only the finest veneers, which are dried to a specific moisture content to prevent internal stress. The core is constructed using a specialized cross-lamination technique, where each layer of wood is placed at a 90-degree angle to the next, significantly increasing the load-bearing capacity and screw-holding strength of the panel.
The HPL itself is composed of multiple layers of kraft paper impregnated with phenolic resin, topped by a decorative paper layer infused with melamine resin. These components are subjected to pressures exceeding 1,000 PSI and temperatures above 140°C. This thermo-fusing process creates a chemical bond that is far stronger than traditional adhesive methods. The result is a monolithic panel that resists cracking and chipping, providing a reliable substrate for intricate CNC routing and edge treatments. This focus on material science ensures that every board leaving our facility meets the highest global standards for architectural components.

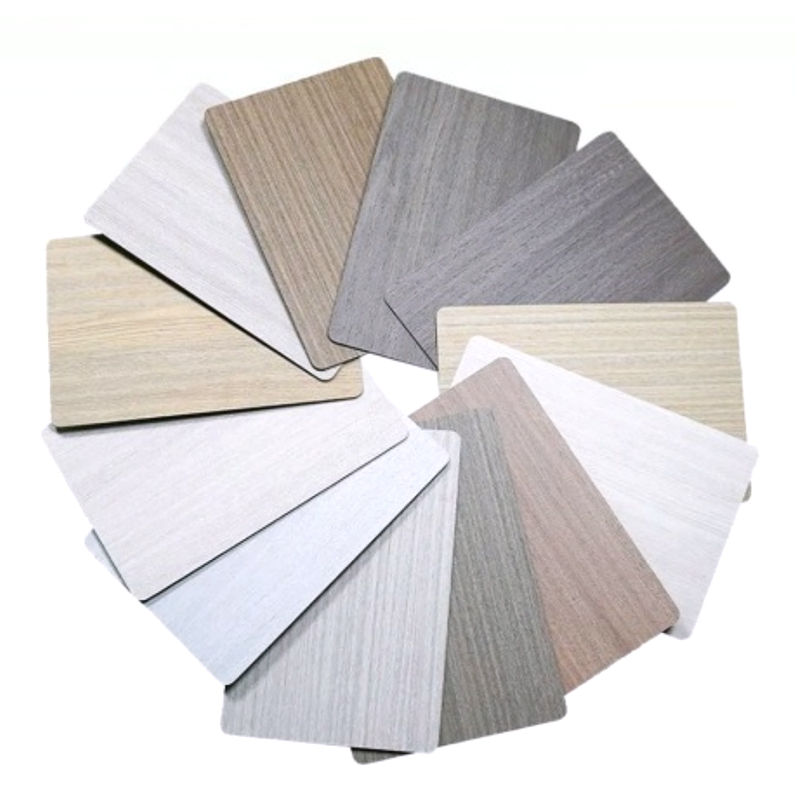

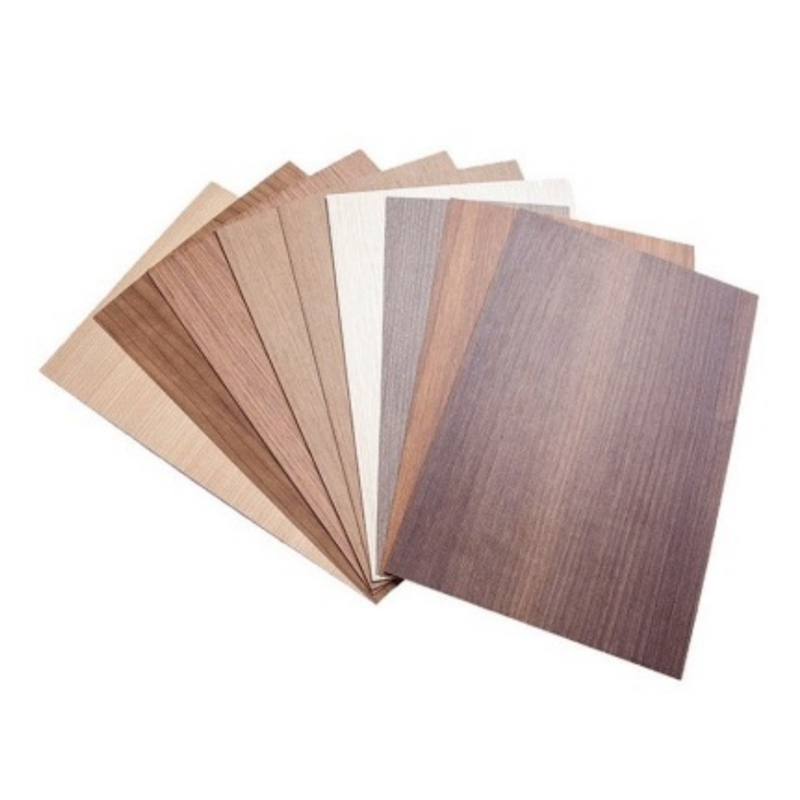

In the world of high-end design, the "feel" of a material is just as important as its performance. Our High-pressure HPL Plywood is available in an extensive palette of colors and textures, allowing designers to achieve almost any visual effect without sacrificing the durability of the surface.
From crisp, hospital whites to deep, charcoal blacks, our solid color range provides a clean, modern aesthetic. For a more traditional or warm atmosphere, our wood grain laminates replicate the natural beauty of oak, walnut, and maple with stunning realism, complete with synchronized textures that follow the grain lines.
We offer a variety of surface finishes to suit specific functional needs. High-gloss finishes provide a reflective, mirror-like quality that expands small spaces, while matte and suede finishes offer a sophisticated, anti-fingerprint surface that is soft to the touch. For industrial applications, we provide micro-textured or "pitted" surfaces that offer enhanced grip and wear resistance.
Safety and compliance are at the forefront of our manufacturing philosophy. We recognize that our products are often used in public spaces where fire safety and indoor air quality are of paramount importance. Our High-pressure HPL Plywood is engineered to meet and exceed international safety benchmarks.
We offer specialized fire-rated cores and HPL surfaces that comply with stringent building codes. These panels are treated to self-extinguish and emit low smoke in the event of a fire, providing critical protection in commercial buildings, hotels, and transport hubs.
Our panels are manufactured using low-emission glues, achieving E0 or CARB P2 certification. This ensures that the VOC (Volatile Organic Compound) output is kept to an absolute minimum, contributing to healthier indoor environments and helping your projects qualify for green building certifications like LEED.
Testing confirms that our HPL surfaces maintain their integrity even after thousands of cycles of abrasive wear. This industrial-grade performance ensures that the initial investment in high-quality materials pays off through reduced maintenance and a significantly longer replacement cycle.
The versatility of High-pressure HPL Plywood makes it a preferred choice across a wide spectrum of industries. Its ability to perform under stress while looking exceptional allows it to transition seamlessly from industrial workshops to luxury boardrooms.
This material is the gold standard for cabinet boxes, doors, and drawer fronts. Its strength allows for larger spans without sagging, and the decorative faces eliminate the need for secondary painting or staining, saving significant labor time during the fabrication process.
In schools, hospitals, and government buildings, the durability of HPL is essential. It is frequently used for wall paneling, cubicle partitions, and lockers where impact resistance and ease of sanitation are the primary requirements.
From laboratory benches that must resist chemical spills to retail display counters that face constant customer interaction, our plywood provides a stable and resilient surface that handles the toughest daily routines with ease.
Selecting a supply partner for your surfacing needs requires a balance of quality, reliability, and technical expertise. As a specialized manufacturer, we offer several distinct advantages that help your business stay competitive and efficient.
Every batch of High-pressure HPL Plywood undergoes a multi-stage inspection process. We check for thickness tolerance, surface clarity, and bond strength to ensure that every panel you receive is ready for immediate use in your production line.
With advanced machinery and optimized logistics, we are capable of handling high-volume requirements without sacrificing the attention to detail required for boutique projects. We maintain a consistent supply chain to ensure your project timelines are never compromised.
We don't just supply panels; we provide solutions. Our technical team is available to advise on the best core materials, glue types, and surface finishes for your specific application, ensuring you get the most cost-effective and high-performing product possible.
We are committed to the responsible management of natural resources. All our timber is sourced from sustainably managed forests, and our production processes are designed to minimize waste and energy consumption.
High-pressure laminate (HPL) is significantly thicker and more durable than standard melamine (LPL). While melamine consists of a single resin-impregnated paper thermally fused to the board, HPL is made of multiple layers of kraft paper bonded under much higher pressure. This results in far superior impact, scratch, and heat resistance, making HPL the preferred choice for horizontal surfaces and high-traffic areas.
Plywood cores offer significantly better screw-holding strength and structural rigidity compared to MDF. Plywood is also much more resistant to moisture, meaning it won't swell or disintegrate as easily if water penetrates the edges. For high-end furniture and commercial installations where longevity is key, a plywood core is almost always the superior technical choice.
While our High-pressure HPL Plywood is exceptionally moisture-resistant, it is primarily designed for interior use. For outdoor applications, specialized exterior-grade HPL and marine-grade plywood cores are required to withstand constant UV exposure and direct rain. We recommend contacting our technical team for advice on products specifically rated for exterior environments.
The most common and professional edge treatment is the use of matching or contrasting PVC or ABS edge banding. Alternatively, many designers choose to leave the multi-layered plywood edge exposed and sealed with a clear lacquer, which provides a modern, "industrial" aesthetic that highlights the authentic wood core.
Yes, as a flexible manufacturer, we can accommodate specific size requirements and press HPL from major global brands onto our premium plywood cores. This allows you to match existing project specifications while benefiting from our superior core quality and precision lamination services.
Product Advantage
The crisscrossing odd-layer structure completely overcomes the inherent defects of natural wood. The static bending strength of HPL Plywood exceeds 30MPa, and its elastic modulus is over 5000MPa. In humid environments, its thickness expansion rate is below 10%, far outperforming standard solid wood and particleboards. This ensures long-term structural stability for finished products.
All panels use E0/ENF grade formaldehyde-free adhesives, with formaldehyde emission strictly controlled at ≤0.025mg/m³. Core veneers undergo high-temperature hot-pressing sterilization, and moisture content is precisely maintained between 8%-12%. This eliminates mold and pests at the source, meeting the strictest global green building and home health standards.
HPL Plywood boasts excellent nail-holding capacity and is easy to saw, drill, engrave and bend. It covers a full specification range from 3mm ultra-thin to 50mm ultra-thick, with optional functional surface treatments including fireproof, moisture-proof and wear-resistant features. These characteristics meet the needs of scenarios from furniture frames to decorative surface materials.
Only high-quality solid wood rotary-cut veneers are selected, with automated production lines conducting strict moisture balancing and defect screening. Intelligent glue adjustment and precise blank assembly ensure uniform glue application per layer, with finished product density deviation rate below 5%. This guarantees internal stress balance and batch-to-batch performance consistency.
As an efficient wood resource utilization product, its yield is 2-3 times that of solid wood. Advanced continuous flat press production lines reduce energy consumption by 15%. The panel is 100% recyclable and holds FSC/PEFC forest certification, balancing economic benefits and environmental protection.
Technical Parameters
HPL Plywood comes with a standard size of 1220x2440mm, with a thickness range of 8mm-18mm. It adopts an excellent grade 13-ply structure, with bonding strength reaching grade Ⅲ(Nc). The formaldehyde emission standard complies with E0 grade requirements, and it is primarily designed for indoor usage. All products are packaged with export standard pallets for safe transportation, and the origin is Linyi, China.
Model NO. | 1220*2440 |
Plywood Type | 13-Ply |
Specifications | 1220*2440*18mm |
Grade | Excellent Grade |
Transport Package | Export Standard Pallets Packing |
Bonding Strength | Ⅲ(Nc) |
Formaldehyde Emission Standards | E0 |
Place of Origins | Linyi China |
Usage | Indoor |
Specification | 1220x2440 |
Product Uses
It serves as the core base material for cabinets, custom wardrobes, table panels and sofa inner frames. Its stability prevents furniture deformation under temperature variations, and strong nail-holding capacity ensures firm hardware installation. Diverse surface treatments satisfy design styles from minimalism to light luxury.
It is widely used as the base layer for indoor ceilings, wall backing boards, wood veneer background walls and wooden floor underlays. Its flat and large surface enables quick installation, providing a stable base for surface decoration. Moisture-proof HPL Plywood is especially suitable for kitchens and bathrooms.
In concrete pouring projects for floors, walls and bridges, it acts as formwork with a high turnover rate of over 20 times. It delivers smooth concrete surfaces after demolding and withstands concrete lateral pressure, improving construction quality and efficiency.
It is an ideal material for heavy equipment packaging boxes, pallets and shelf partitions. Its cross-laminated structure offers excellent impact and bending resistance, protecting transported goods effectively. It is also used for non-load-bearing partitions and decoration in ships and vehicles.
It is favored by creators for commercial displays, exhibition props, musical instrument resonators and artworks. Panels of different thicknesses can be easily shaped, providing a reliable carrier for realizing creative ideas.
FAQ
Its core advantage lies in solid wood-based structural strength and stability. Its load-bearing capacity, bending resistance and nail-holding capacity far exceed crushed-material boards. It also has better moisture resistance, making it ideal for cabinets and load-bearing furniture.
The key is the formaldehyde emission limit in test reports. The highest national standard is ENF grade (≤0.025mg/m³), followed by E0 grade. Our ENF series products provide national authoritative test reports to ensure indoor air safety.
Yes, but it depends on the base material. Faced plywood with high-quality veneers like birch can be painted directly. Plain boards need putty leveling first to achieve optimal decorative results.
Only moisture-proof or waterproof HPL Plywood with phenolic resin adhesive and Class I/II waterproof grade is applicable. Ordinary panels cannot maintain stable performance in humid conditions.
