Product Description

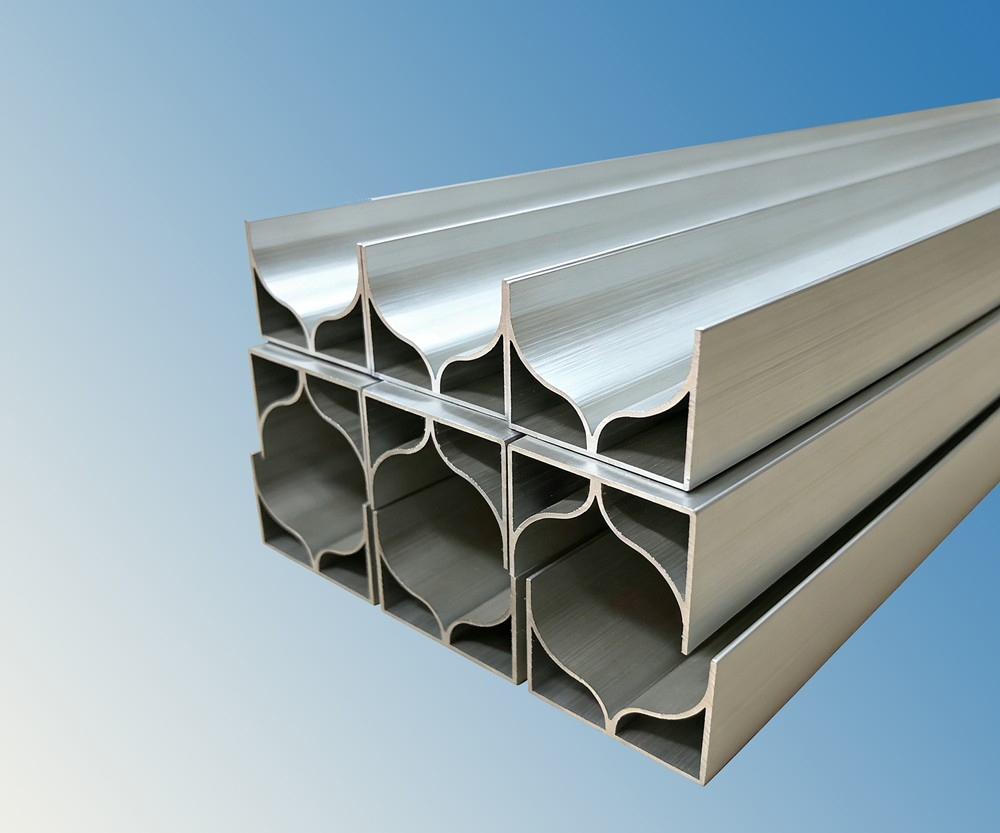

U-shaped groove Aluminum and aluminum alloy U-shaped channels are widely used aluminum materials. Their cross-section is in the shape of a "U" (three sides enclosed, one side open). | |||
Classification | Description | Common Alloy Designations and Characteristics | Common application scenarios |
General standard U-shaped groove | The more common U-shaped groove has equal heights on both sides and a regular cross-section. It is mainly used for inlaying, supporting, enclosing, and serving as a simple guiding or waterproof groove. | The 6XXX (mainstream) material has excellent extrusion properties and outstanding surface treatment (oxidation, spraying) performance. Its strength is sufficient for most general applications. | Door and window glass moldings, advertising board/identification plate frames, equipment waterproof edge grooves, simple guide rails. Installation bases for glass curtain walls or skylights, lined conduits with covers, connection pieces for combined frames. Large-scale edge trimming for ceilings or wall panels, wide-edge decorations for furniture, smoke-blocking plates for countertops. Embedded glass partitions, photovoltaic panel frames, precision instrument guide rails, concealed light grooves. |
Structural load-bearing U-shaped groove | The wall thickness is relatively thick and the dimensional accuracy is high. It is often used in situations where it needs to bear certain loads and serves as a guide rail or structural framework. | 6XXX (Choose first): High strength and high hardness, with excellent load-bearing and wear-resistant properties. 6XXX: Good welding performance, suitable for load-bearing structures that require welding assembly. | Mechanical equipment linear guide base, load-bearing sliding grooves in industrial aluminum profiles systems, heavy-duty sliding door tracks, photovoltaic support components. Suspension system tracks (such as workstation hanging rails), window and door sealing tape installation grooves, ventilation filter net frames, LED light strip installation grooves. |
