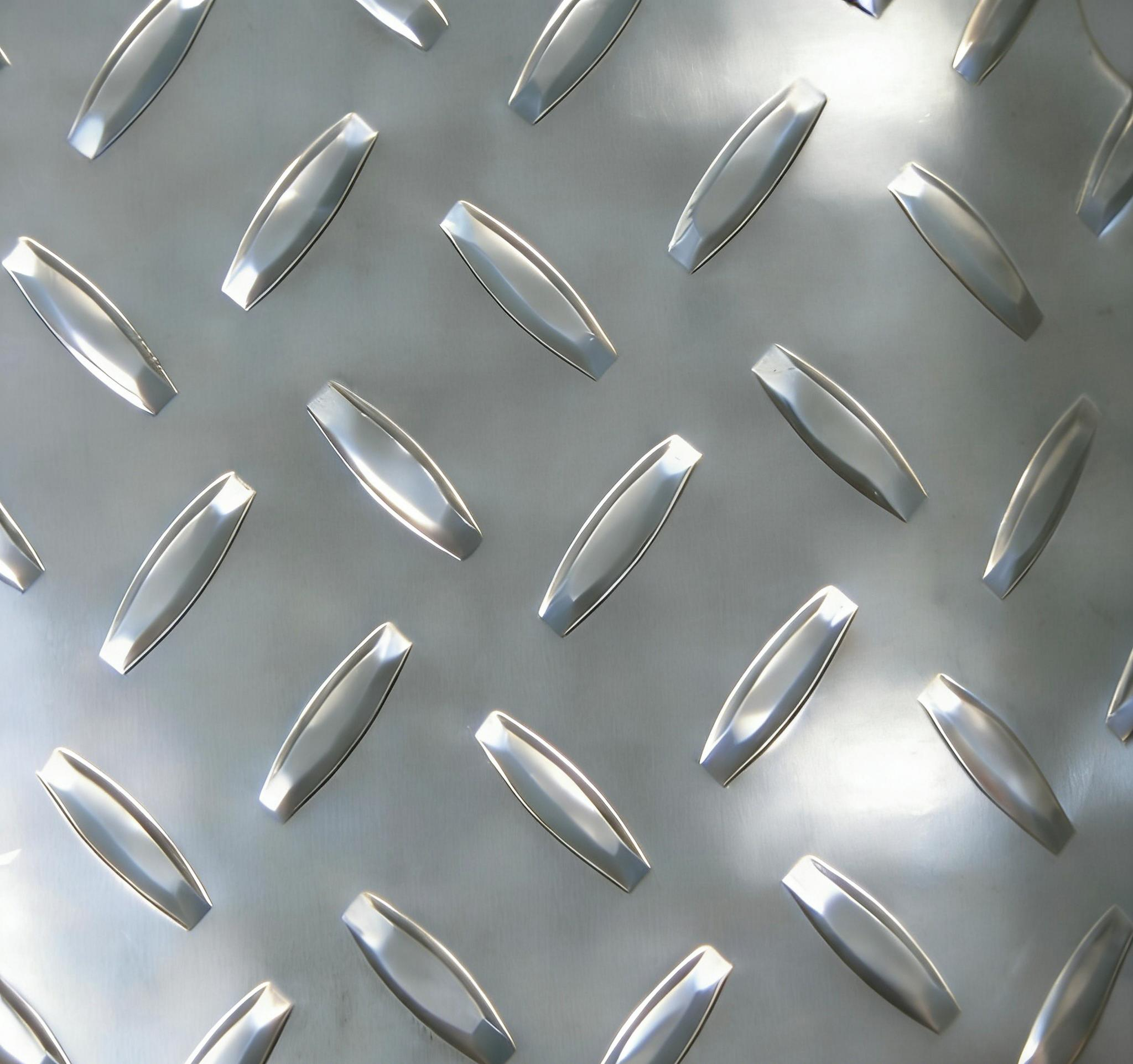

No. 2 Flowered Flat Bean-shaped Panel

The flat bean-shaped pattern aluminum sheet (also known as "Pattern No. 2") is an aluminum sheet with flat bean-shaped raised patterns on one side. Its main function is to prevent slipping, and it also has decorative and certain reinforcing effects.

Main application fields:

Transportation: Bottom plates of truck compartments, platforms, car foot pedals.

Industrial construction: Floors and work platforms in workshops and factories for anti-slip properties, stair treads.

Commercial facilities: Floors of cold storage rooms and warehouses, anti-slip floors of elevator carriages.

Building decoration: Wall decorations of buildings.

Select the material based on the environment:

In humid and corrosive environments (such as ships, coastal areas, and chemical plants): Choose 5-series aluminum-magnesium alloy (such as 5052) first, as it has good corrosion resistance.

For general outdoor or vehicle compartments: The cost-effective option is 3-series aluminum-manganese alloy (such as 3003).

For dry indoor areas or those with low load requirements: You can choose the economical 1-series pure aluminum (such as 1060).

Select the thickness based on the load: The thickness of the base plate is crucial for load-bearing. It ranges from 2.0mm for light loads to over 4.0mm for heavy loads. The greater the load or the larger the span, the thicker the sheet should be selected. Pay attention to the quality of the pattern: High-quality patterned plates require full patterns and uniform heights, which directly affect the anti-slip effect and appearance. Clarify standards and conditions: When purchasing, it is necessary to clearly specify national standards (such as GB/T3618-2006), the alloy grade, and the supply status (such as H2XX). These determine the mechanical properties of the material.
