Product Introduction

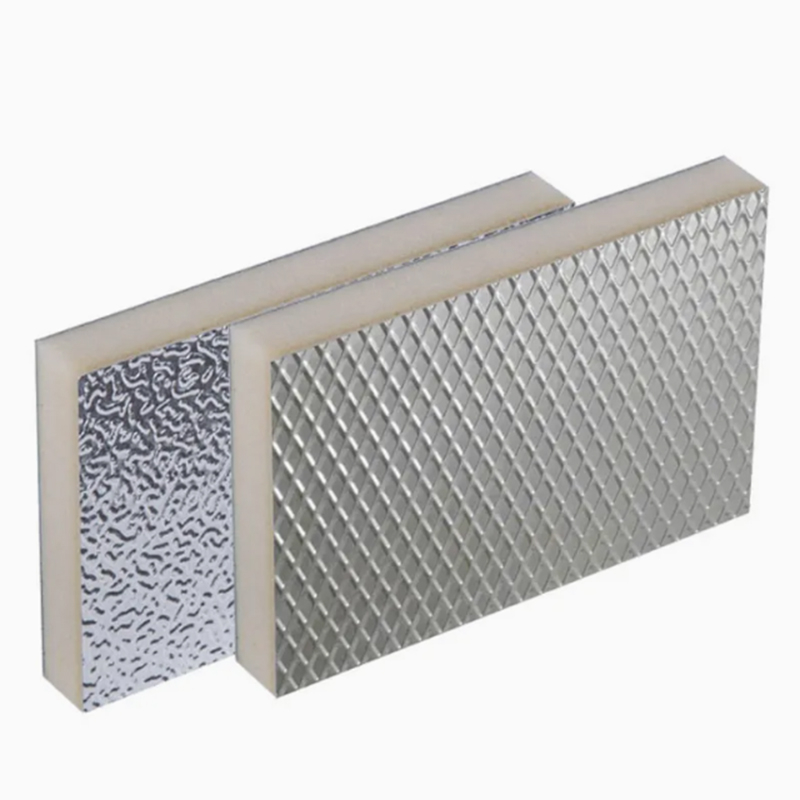

Embossed Aluminum-Clad PIR Foam Panels are high-performance building envelope materials engineered for wall and roof insulation solutions. Composed of top-grade color-coated steel plates or aluminum sheets as surface layers, and rigid PIR foam with a closed-cell rate over 95% as the core material, these panels are manufactured via a continuous automated production line. They integrate outstanding thermal insulation, efficient waterproofing, lightweight high-strength properties into one, with a thermal conductivity as low as 0.022 W/(m·K). This far surpasses traditional insulation materials, enabling significant reduction in building energy consumption. Ideal for industrial plants, logistics warehouses, commercial buildings and modern agricultural facilities, the panels deliver reliable integrated energy-saving solutions for diverse construction projects.
Product Advantage
The panel core adopts an advanced formula, with a thermal conductivity ranging from 0.022 to 0.024 W/(m·K). Its insulation performance is 3 to 5 times that of traditional materials. In summer, buildings using these panels can see a roof surface temperature reduction of over 20℃. In winter, heat loss is cut by more than 60%, helping achieve a 40%-50% comprehensive building energy-saving rate. This makes it a top choice for energy-efficient construction projects.
Produced via precise composite molding on imported German continuous production lines, the panels boast a compressive strength of over 150kPa. They have excellent wind resistance and load-bearing capacity, allowing direct walking for maintenance work. With a density of only 40-45kg/m³, they are over 90% lighter than traditional concrete roofs. This significantly reduces building structural load and foundation costs, making them perfect for large-span factory roofs and renovation projects.
Equipped with an exclusive patented 360° lock seam lap joint system and special waterproof sealing tape, the panels form a fully sealed waterproof layer. The surface layer uses a 55% aluminum-zinc alloy coated steel plate, offering a corrosion resistance life of over 25 years. Third-party tests confirm no leakage risks under heavy rain and strong wind conditions, backed by a 15-year waterproof warranty for the whole system.
The core material passes national fire certification, meeting the B1-level flame-retardant standard, with optional A-level fireproof composite core material available. The production process adopts an environmentally friendly fluorine-free foaming technology (cyclopentane system). The product has obtained China Green Building Materials Product Certification, making it suitable for food, medicine and other industries with strict environmental requirements.
Technical Parameters
These embossed aluminum-clad PIR foam panels feature flexible specifications to meet diverse project needs. The effective width ranges from 400mm to 1000mm, and the panel thickness offers multiple options: 30mm, 35mm, 40mm, 50mm, 60mm, 75mm, 100mm, 150mm and 200mm. Surface sheet materials include PPGI, PPGL, aluminum sheets, Al-Mg-Mn alloy metal sheets, stainless steel, aluminum foils and PVC sheets. The thickness of steel sheets is 0.40-0.75mm, aluminum and Al-Mg-Mn alloy sheets are 0.70-1.20mm, and stainless steel sheets are 0.40-0.60mm. Regular panel colors are white grey, sea blue, silver grey, dark grey and iron grey, with coating types including PE, PVDF, HDP and SMP. The maximum length is limited by container size: ≤5.95m for 20FT containers and ≤11.95m for 40FT containers.
Effective width | 400-1000 mm |
Panel thickness | 30,35,40,50,60,75,100,150,200 mm |
Surface sheets | PPGl/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel/ Aluminum foils/PVC sheet |
steel thickness | 0.40 - 0.75 mm |
Aluminum sheets/ Al-Mg-Mn alloy metal sheets | 0.70 - 1.20 mm |
Stainless steel | 0.40 -0.60 mm |
Regular panel color | White grey, Sea blue, Sliver grey, Dk grey, lron grey |
Coating type choice | PE/ PVDF/ HDP/ SMP, etc. |
Coating type choice | 20FT container:≤5.95m |
Product Uses
The lightweight high-strength characteristics of the panels enable large-span roof structures, reducing internal columns and maximizing storage and operation space. Excellent insulation maintains stable workshop temperatures, ensuring efficient equipment operation and lowering air conditioning energy consumption.
As a key enclosure material for cold storage, the panels’ ultra-low thermal conductivity and moisture resistance maintain a stable low-temperature environment of -25℃ to 15℃. They prevent cold loss and condensation, ensuring the quality and safety of refrigerated goods, and are the first choice for high-standard low-temperature warehouses.
Suitable for sports venues, exhibition centers, shopping malls and other large public buildings, the panels support rapid installation to shorten construction periods. Their integrated design and diverse color options match architectural aesthetics, while providing long-term waterproof and insulation functions to enhance building comfort and operational economy.
Applied in modern agricultural greenhouses and ecological breeding farms, the panels’ excellent insulation creates stable growth environments for animals and plants. The corrosion-resistant and easy-to-clean surface meets agricultural hygiene requirements, facilitating energy-saving and standardized production in modern agriculture.
FAQ
Our panels adopt the 360° lockedge lap system combined with dedicated waterproof tape. They have passed wind lift resistance and simulated heavy rain tests, forming a complete physical waterproof layer to ensure long-term no leakage.
The standard product meets the B1 grade flame-retardant standard and has national fire product certification. For public buildings with higher requirements, we provide A-level fireproof composite boards that comply with strict standards.
No additional insulation layer is needed. The PIR core material itself is a high-efficiency insulation layer with a thermal conductivity as low as 0.022 W/(m·K). The integrated design meets the energy-saving and insulation needs of both civil and industrial buildings.
The 55% aluminum-zinc alloy surface layer has a design life of over 25 years. We offer a 15-year quality guarantee for the entire roofing system, covering waterproofing, insulation and structural integrity.
